Fixation des poteaux (Glissière)

Auteur Klos up! | Dernière modification 5/05/2026 par Klos up!

Difficulté

Facile

Durée

20 minute(s)

Fixation des poteaux (Glissière)

Difficulté

Facile

Durée

20 minute(s)

Opérations

Poser mon produit

Personnes

1

Sommaire

1 Introduction
2 Pièces et outils
3 Étape 1 - Percez la glissière 4,5mm. (Effectuez un avant trou en commençant par le bas et le haut à 30mm. Percez ensuite environ tout les 200mm sur toute la hauteur de la glissière)
4 Étape 2 - Présentez la glissière sur le pilier, vérifiez l'aplomb puis tracez l'emplacement des trous.
5 Étape 3 - Percez le pilier avec un foret adapté au diamètre des chevilles utilisées (non fournies) et dépoussiérez.
6 Étape 4 - Insérez les chevilles à l'aide d'un maillet et fixez la glissière.
7 Commentaires

Introduction

La glissière sert de point de départ ou d’arrivé à la clôture. elle peut être fixée sur un poteau Klos up, sur une maçonnerie ou sur un poteau alu

Pièces et outils

Pièces et outils

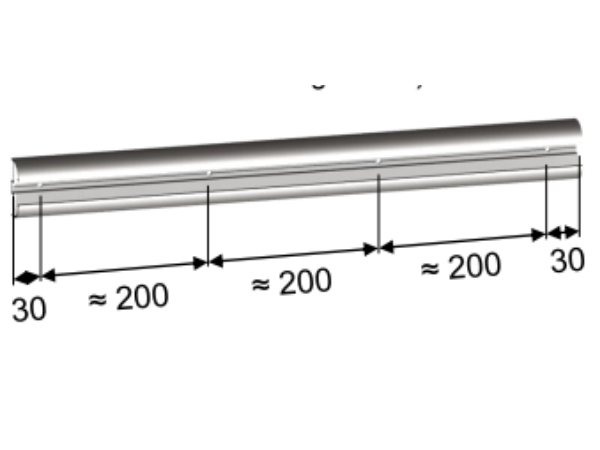

Étape 1 - Percez la glissière 4,5mm. (Effectuez un avant trou en commençant par le bas et le haut à 30mm. Percez ensuite environ tout les 200mm sur toute la hauteur de la glissière)

Normal

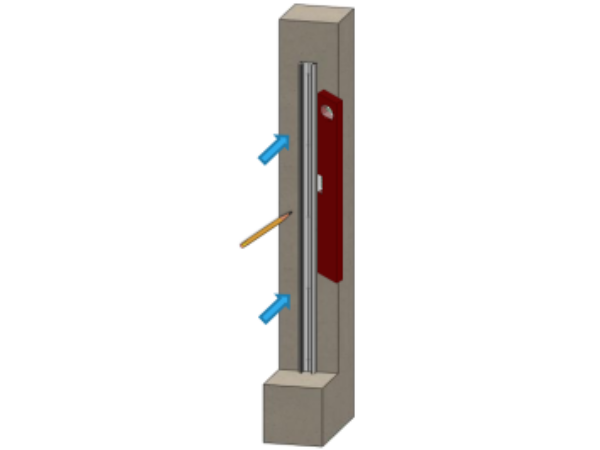

Étape 2 - Présentez la glissière sur le pilier, vérifiez l'aplomb puis tracez l'emplacement des trous.

Normal

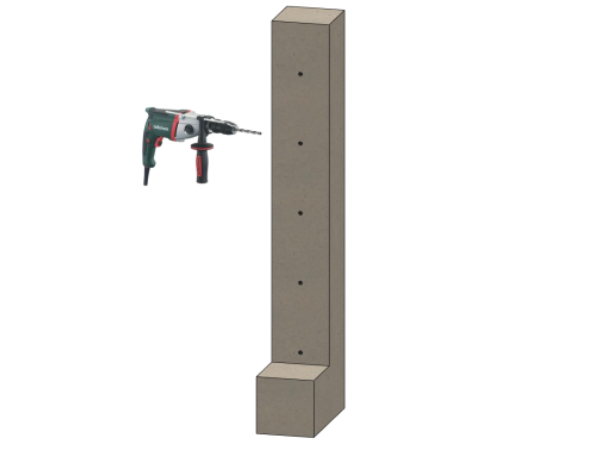

Étape 3 - Percez le pilier avec un foret adapté au diamètre des chevilles utilisées (non fournies) et dépoussiérez.

Normal

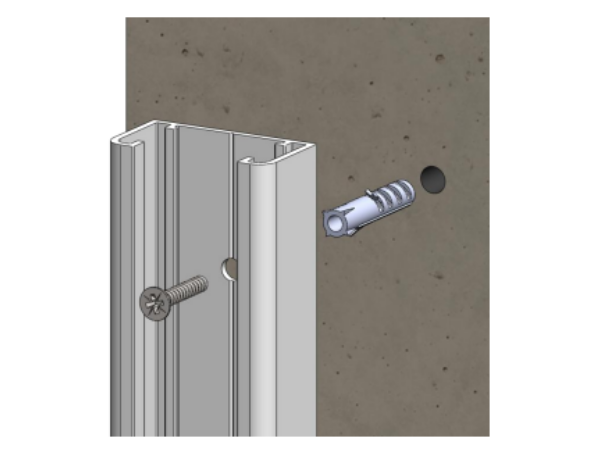

Étape 4 - Insérez les chevilles à l'aide d'un maillet et fixez la glissière.

Normal
