Fixation des poteaux (profil angle variable)

Auteur Klos up! | Dernière modification 5/05/2026 par Klos up!

Pas encore d'image

Difficulté

Moyen

Durée

20 minute(s)

Fixation des poteaux (profil angle variable)

Difficulté

Moyen

Durée

20 minute(s)

Sommaire

1 Pièces et outils
2 Étape 1 - Préparez le profil d’angle en montant un embout en bas du profil.
3 Étape 2 - Clippez les profils d’angle avec l’embout en bas dans chaque poteau, l’embout bas doit reposer sur la platine. (le poteau doit avoir été fixé au muret)
4 Étape 3 - Une fois les lames et les entretoises en place, mettez en place les embouts haut des profils d’angle.
5 Étape 4 - Vissez l’embout haut au profil d’angle avec une vis autoforante 3,5x16 mm.
6 Étape 5 - Insérez le closoir haut du profil d’angle sous l’embout haut du profil angle
7 Commentaires

Pièces et outils

Pièces et outils

Étape 1 - Préparez le profil d’angle en montant un embout en bas du profil.

En cas d’utilisation d’un cache platine

passez cette étape. Le profil d’angle et le remplissage reposeront directement

sur le cache platine

Normal

Étape 2 - Clippez les profils d’angle avec l’embout en bas dans chaque poteau, l’embout bas doit reposer sur la platine. (le poteau doit avoir été fixé au muret)

Normal

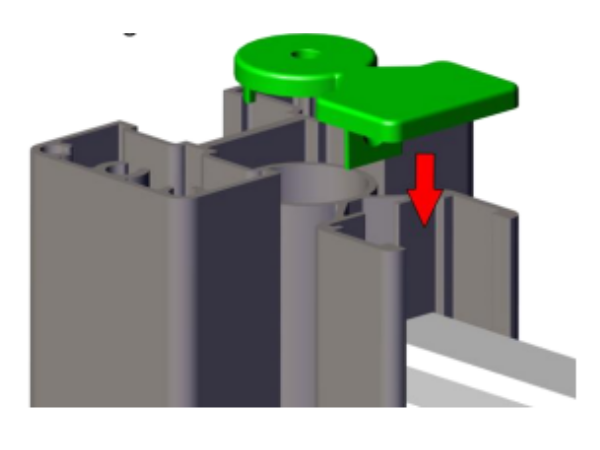

Étape 3 - Une fois les lames et les entretoises en place, mettez en place les embouts haut des profils d’angle.

Normal

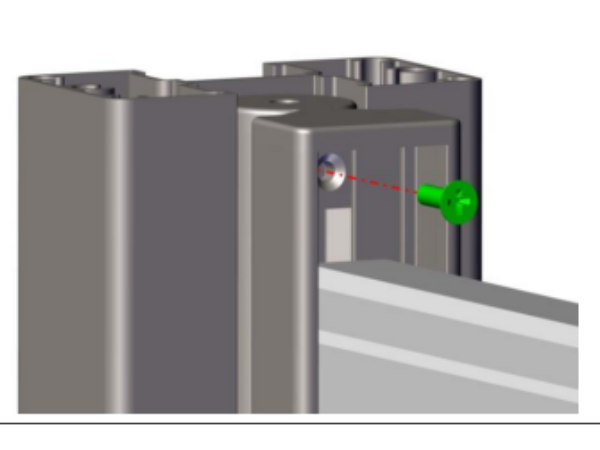

Étape 4 - Vissez l’embout haut au profil d’angle avec une vis autoforante 3,5x16 mm.

Normal

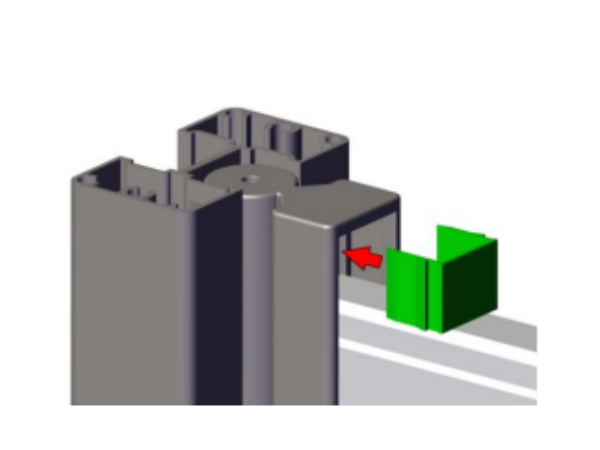

Étape 5 - Insérez le closoir haut du profil d’angle sous l’embout haut du profil angle

Normal
