Poteau 150 x 150 en scellement

Auteur avatarKlos up! | Dernière modification 5/05/2026 par Klos up!

Difficulté
Moyen
Durée
2 minute(s)
Poteau 150 x 150 en scellement
Difficulté
Moyen
Durée
2 minute(s)
<languages />

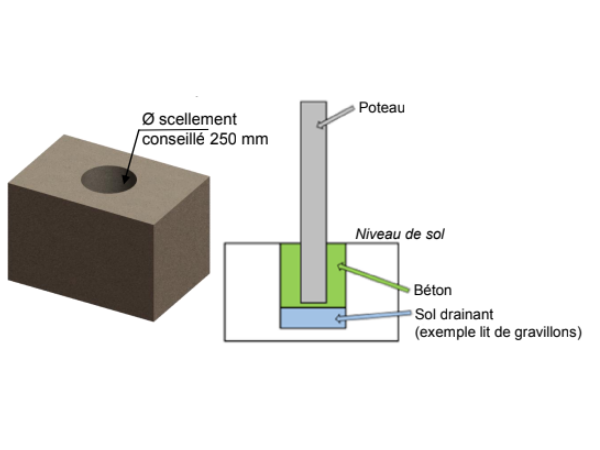

Étape 1 - Réalisez une réservation (voir tableau ci-dessous pour profondeur)


Hauteur

Hors sol

0 à

1000mm

1001 à

1500mm

1501 à

1800mm

1801 à

2000 mm

Scellement 150mm 200mm 300mm 400mm




Étape 2 -

Mettez en place le poteau et remplir, la réservation et le poteau, de béton jusqu’au niveau de sol


Béton* à prise rapide interdit, ainsi que les accélérateurs de prise (voir béton compatible)

Étape 3 -

Mettez le poteau d’aplomb avant la prise de béton

Étape 4 -

Réalisez un perçage (Ø 6 mm) pour l’évacuation d’eau à la liaison béton / air pour l’évacuation de l’eau

Étape 5 -

Une fois tous les éléments positionnés sur le poteau, Mettez en place l’embout de poteau et vissez le avec les 4 vis pour embout 6,3x50 TF torx.

Étape 6 -

Une fois tous les éléments positionnés sur le poteau, Mettez en place l’embout de poteau et vissez le avec les 4 vis pour embout 6,3x50 TF torx.
