Étape 1 -

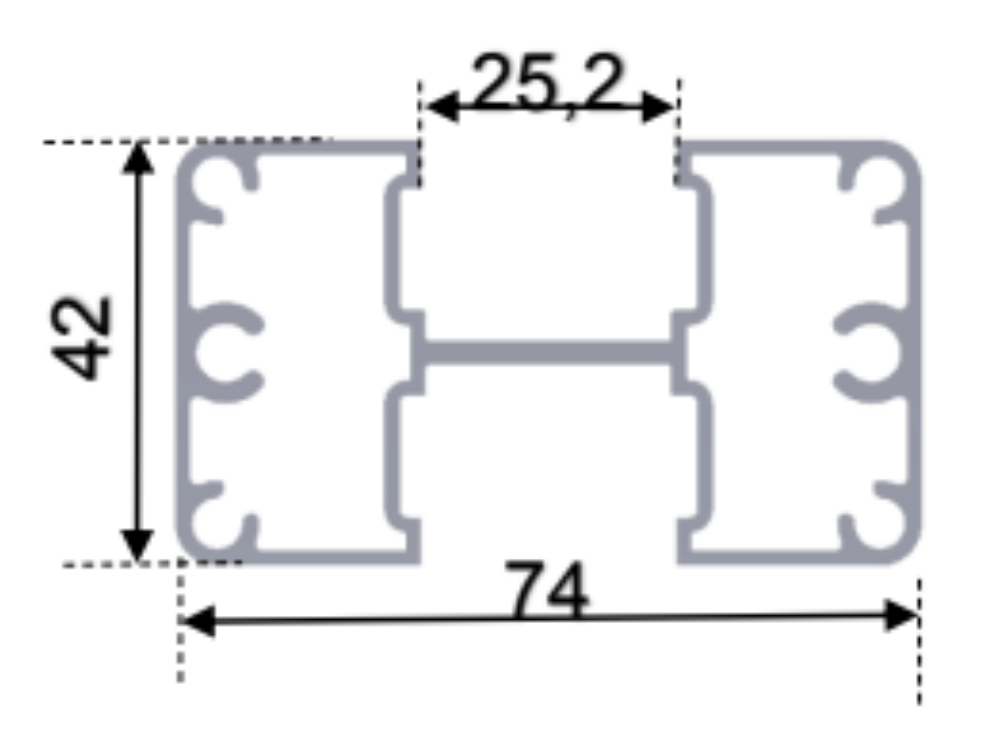

  • Poteau aluminium (livré en longueur 2300 mm, 1870 mm ou 1200 mm)
  • Glissière aluminium (livré en longueur 2300 mm, 1870 mm ou 1200 mm)
  • Closoir aluminium (livré en longueur 2300 mm, 1870 mm ou 1200 mm)


Étape 2 - Type de finition

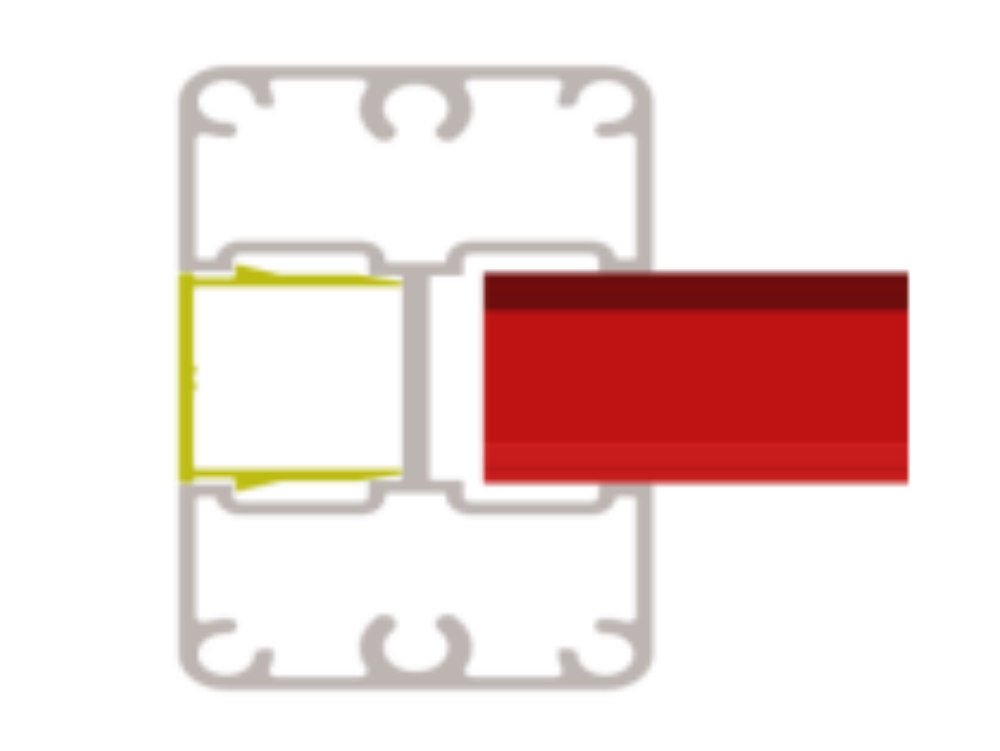

  • Poteau d’extrémité (utilisation d’un closoirs de finition)
  • Glissière d’extrémité à visser sur pilier

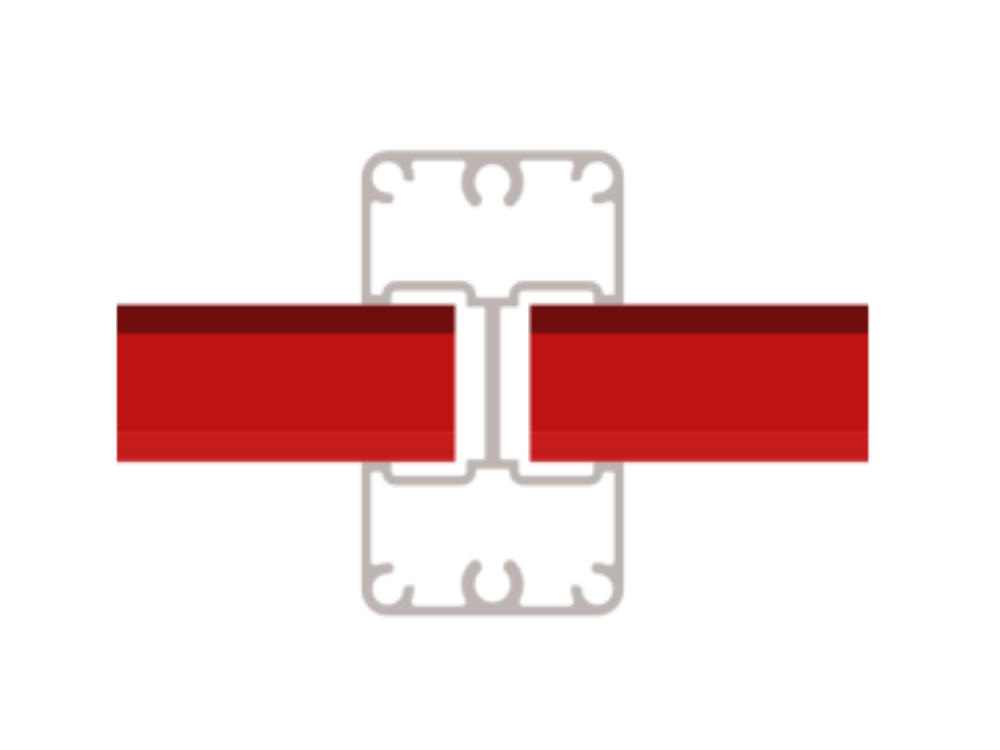

  • Poteau intermédiaire

Le montage des closoirs doit s’effectuer une fois les poteaux fixés

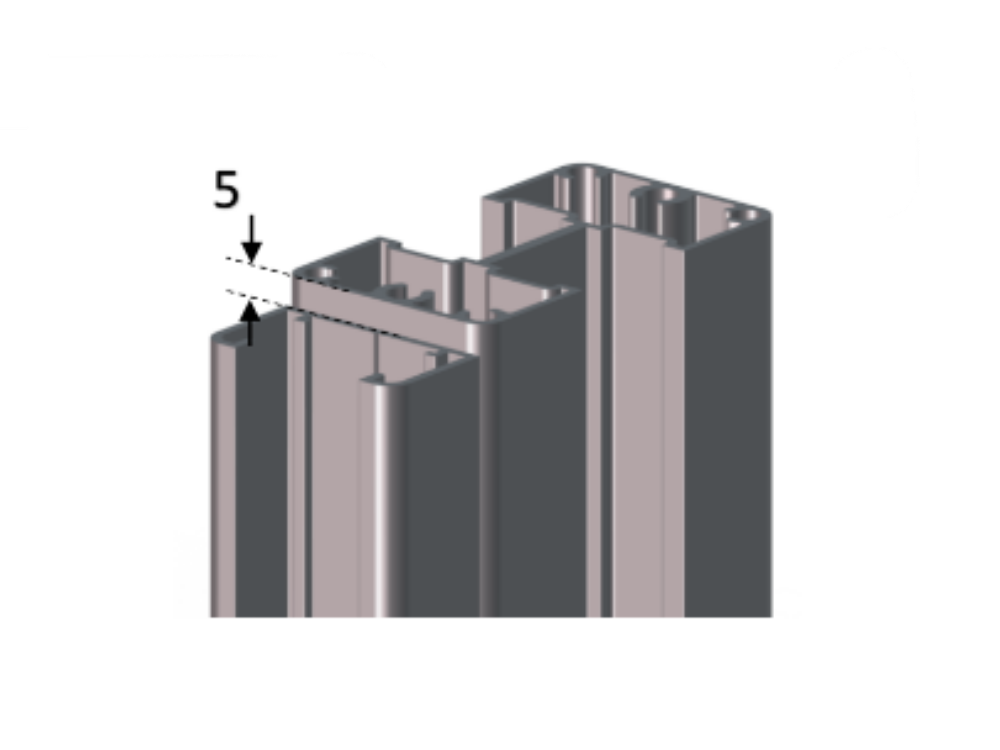

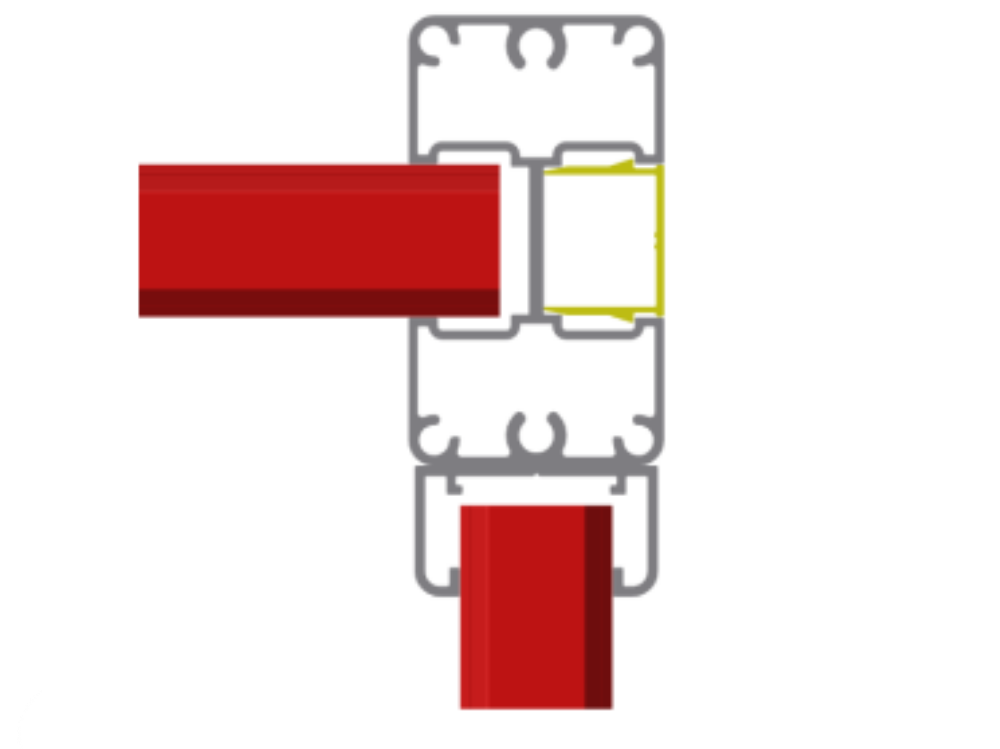

  • Poteau d’angle 90° (utilisation d’une glissière et d’un closoir de finition) Dans le cas présent, la glissière sera toujours à couper 5 mm plus court que le poteau

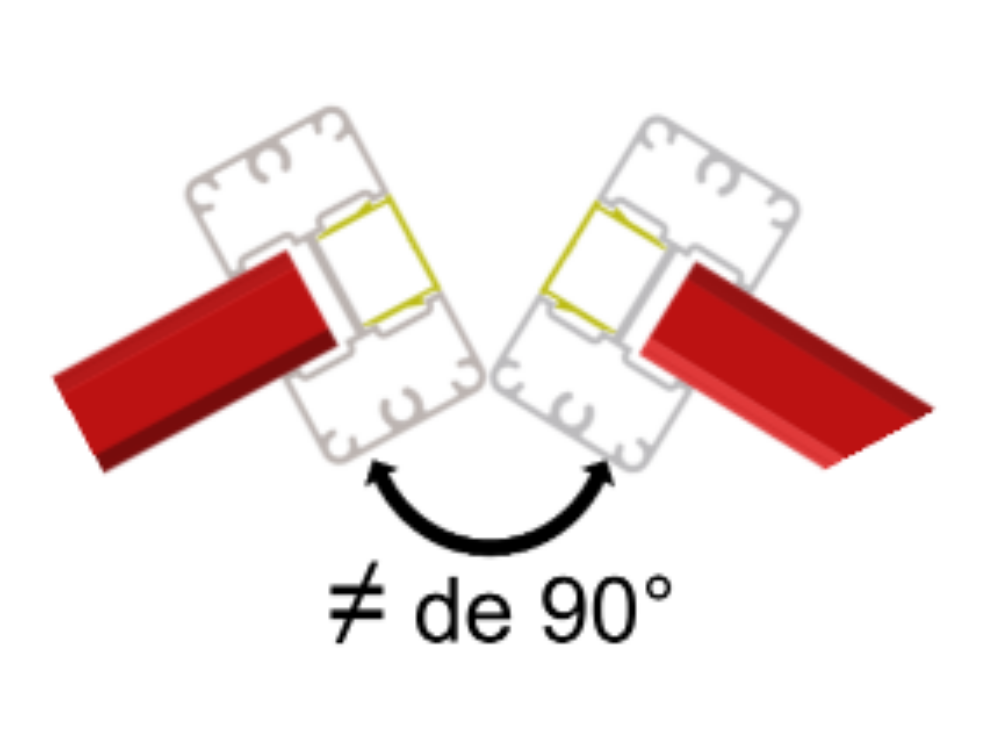

  • Poteau d’angle différent de 90° (utilisation de 2 poteaux et 2 closoirs de finition)
Attention : il faut tenir compte de la largeur des platines pour l’implantation des poteaux
Le montage des closoirs doit s’effectuer une fois les poteaux fixés.
